What is a fire rated door?

Introduction to Fire Rated Doors

Definition of a Fire Rated Door

Designers create a fire rated door to withstand fire for a certain period, helping to slow the spread of flames, smoke, and heat. These doors are crucial in protecting lives and property during a fire emergency. Manufacturers build fire rated doors from materials like steel, timber, or glass, testing them to endure extreme heat and flames. Experts measure the door’s fire resistance in time, commonly referring to it as a ‘fire rating. This rating indicates how long the door can resist fire—such as 20, 60, or 90 minutes—before it begins to fail.

Essential Barriers Against Flames and Smoke

Fire rated doors don’t just stop flames—they also prevent smoke from spreading, which is often just as dangerous in a fire. Many fire doors come with special seals, intumescent strips, that expand in high heat, sealing the door gaps and keeping smoke at bay. Building codes often mandate these doors in many commercial and residential buildings to protect escape routes, stairwells, and other critical areas.

Importance of Fire Rated Doors in Building Safety

Fire rated doors play a vital role in building safety. In the event of a fire, these doors help buy time, allowing people to evacuate safely and reducing the damage to the structure. By slowing the spread of fire, they confine flames and smoke to a smaller area, giving firefighters more time to control the blaze.

Buildings such as offices, schools, hospitals, and apartment complexes depend on fire rated doors to ensure safety. Without them, fires can spread rapidly through hallways and stairwells, cutting off escape routes. Many local building codes require fire-rated doors in specific locations, especially where people gather large numbers, and escape routes are critical.

Installing fire rated doors also ensures that a building meets fire safety regulations, which can help avoid fines and legal issues. Moreover, these doors can increase a property’s value by contributing to overall safety and compliance with building standards.

Common Terms and Synonyms: Fire-Resistant Doors, Fireproof Doors, Fire-Retardant Doors

When talking about fire rated doors, you may come across a few different terms. People often use other terms like ‘fire-resistant doors,’ ‘fireproof doors,’ and ‘fire-retardant doors’ interchangeably, although ‘fire rated door’ is the most common. Though they all refer to doors designed to withstand fire, it’s important to note that these terms emphasize different aspects of the door’s function.

Fire-Resistant Doors generally focus on the door’s ability to resist and prevent fire from spreading.
Fireproof Doors suggest that the door is almost immune to fire, though no door is completely “fireproof.” Instead, designers create fire rated doors to endure fire for a specific duration.
Fire-Retardant Doors emphasize the materials used, treated, or built to slow the fire’s progress.

Understanding these terms helps you select the right fire rated door for your needs, ensuring maximum safety and compliance with fire safety standards.

In short, fire rated doors are essential for maintaining building safety, preventing the rapid spread of fire and smoke, and ensuring that escape routes remain usable in an emergency.

How Fire Rated Doors Work

The Science Behind Fire Resistance

Engineers carefully design fire rated doors to resist fire and smoke for a set amount of time, helping to protect lives and property in case of a fire. The key to how a fire rated door works lies in its materials and construction. Manufacturers design fire-rated materials, such as steel, timber, or special fire-resistant glass, to hold up against high heat without warping or burning too quickly. These materials don’t just withstand the fire itself but also block heat and smoke from moving to other parts of the building.

When a fire breaks out, a fire rated door keeps flames and smoke confined to one area, giving people time to escape and allowing firefighters a better chance to control the situation. The fire rating—whether 20, 60, or 90 minutes—tells you how long the door can hold back the fire before it starts to fail. But it’s not just about the door; the whole door assembly, including the frame, seals, and hardware, plays a crucial role.

How Fire-Rated Materials Function

The materials used in fire rated doors are what give them their fire-resistant properties. For example, steel is one of the most common materials because it can withstand extremely high temperatures without breaking down. People often choose timber fire doors, especially in residential settings, because they can treat them with special fire-retardant chemicals to slow the burning process. Glass fire rated doors use a special type of fire-resistant glass, which doesn’t shatter under heat but instead forms a protective barrier.

Intumescent seals are another critical component. These seals, placed around the edges of fire rated doors, expand when exposed to heat, filling the gaps between the door and the frame. This prevents smoke and toxic fumes from spreading through small openings, which is just as important as stopping the fire.

Fire Door Assembly Components (Door, Frame, Seals, Hardware)

A fire rated door functions as part of a larger system known as a fire door assembly, rather than just as a standalone door. This assembly includes the door, frame, seals, and hardware—each part working together to ensure the door performs in a fire situation.

Door: The door panel is the most visible part, typically steel, timber, or fire-rated glass. The door’s core is usually solid and designed to block fire and heat.
Frame: The builder constructs the frame to resist fire, just like the door. The frame must fit the door perfectly to ensure no gaps allow fire or smoke to escape. Manufacturers often use steel frames because of their durability.
Seals: Intumescent seals are a key feature. These seals sit around the edge of the door and swell up when they get hot, sealing the door tightly. This helps stop both fire and smoke from spreading to other areas.
Hardware: The hardware includes door hinges, latches, and closers. All of these must be fire-rated as well. If even one part of the hardware fails during a fire, the door might not function properly. Designers often install automatic closers to ensure the fire-rated door shuts immediately when a fire alarm goes off.

Fire Rating Classifications

Fire rated doors come with specific fire ratings, which indicate how long the door can resist fire, heat, and smoke before failing. These ratings are critical for determining a fire rated door’s level of protection. Fire rating classifications are typically measured in minutes, showing how much time a door can withstand fire. The most common fire rated doors are classified by time: 20-minute, 30-minute, 45-minute, 60-minute, 90-minute, and 120-minute doors. The longer the rating, the more time the door can protect against fire and smoke.

Time Ratings: 20-Minute, 30-Minute, 45-Minute, 60-Minute, 90-Minute, 120-Minute Doors

20-Minute Fire Rated Doors

People often use these in locations where the fire risk is lower, such as residential buildings or areas where a fire is less likely to spread quickly. Builders often install a 20-minute fire rated door in corridors or small office spaces. While it provides some protection, its main purpose is to slow down the fire’s initial spread, giving people time to evacuate.

30-Minute Fire Rated Doors

Designers specially create a 30-Minute Fire Rated Door to resist fire, heat, and smoke for at least 30 minutes during a fire. Manufacturers construct these doors with multiple layers, often incorporating fire-resistant cores and heat-resistant coatings to slow down the spread of flames. This delay is crucial for occupants to evacuate safely and for emergency services to respond. The 30-minute fire rating is a common requirement in building codes, particularly in residential, apartment, and office settings, ensuring safety and protection during a fire incident.

45-Minute Fire Rated Doors

These doors are more common in commercial spaces, such as offices and small retail stores. A 45-minute fire rated door can withstand fire for a longer period, making it a solid choice for rooms that connect to main exit routes or where people may need more time to evacuate.

60-Minute Fire Rated Doors

Builders often place a 60-minute fire rated door in stairwells or exits in multi-story buildings. These doors block fire and smoke for up to an hour, giving people more time to escape and firefighters more time to control the blaze. Authorities commonly require this rating in places with higher fire risks, such as large apartment complexes or industrial buildings.

90-Minute Fire Rated Doors

Installers typically place these doors in high-risk areas like factories, hospitals, or schools, where they offer significant protection. Designers create a 90-minute fire rated door to resist fire and smoke for an extended period, ensuring critical areas like emergency exits remain safe and usable for evacuation.

120-Minute Fire Rated Doors

Professionals use the highest-rated, 120-minute fire rated doors in extreme risk areas, such as chemical plants or large industrial complexes. These doors offer maximum fire protection, allowing up to two hours for safe evacuation or fire containment. While not common in everyday commercial buildings, they are crucial in settings where fire hazards are severe.

Smoke Resistance and Heat Containment Features

In addition to blocking flames, fire rated doors also play a crucial role in containing smoke and heat, which are often more dangerous than the fire itself. Fire rated doors with smoke resistance features have special seals around their edges, called intumescent seals or smoke seals, which expand when exposed to heat. These seals close gaps between the door and frame, preventing smoke from passing through. Smoke inhalation can be deadly, so stopping its spread is essential for protecting people during evacuation.

On top of this, fire rated doors help with heat containment. By holding back the fire and heat in one area, these doors keep the temperature down in other parts of the building, making it easier for people to escape. This also prevents the fire from quickly reaching combustible materials in different rooms. The combined resistance to heat and smoke makes fire rated doors a key safety feature in any building, whether a small office or a large industrial plant.

The Role of Intumescent Seals in Fire Rated Doors

One key feature that makes fire rated doors so effective is the use of intumescent seals. These seals are small but powerful components that are critical in containing fire and smoke. Intumescent seals are typically installed around the edges of a fire rated door and remain inactive under normal conditions. However, when exposed to high heat, such as during a fire, they expand rapidly to seal off any gaps between the door and its frame.

The purpose of these seals is simple: to block fire and smoke from moving through cracks or gaps that would otherwise allow them to spread more quickly. When a fire breaks out, the heat causes the intumescent material to swell, expanding up to 20 times its original size. This creates a tight barrier that prevents flames, toxic gases, and smoke from escaping into other parts of the building.

Without intumescent seals, even the best fire resistant doors would leave small gaps where smoke could travel. Smoke is often more dangerous than fire because it spreads faster, and inhaling it can be deadly. By sealing off these gaps, intumescent seals help protect escape routes, giving people more time to evacuate safely. They also keep the fire contained in one area, making it easier for firefighters to control the blaze.

Different Types and Sizes

Depending on the door’s fire rating, these seals come in different types and sizes. Some seals are designed specifically for smoke control, while others are focused on blocking fire. In most cases, a high-quality fire rated door will use a combination of both.

In addition, the seals work with other door components, such as the frame and hardware, to create a complete system that maximizes fire safety. With proper installation and the right kind of intumescent seals, a fire rated door may perform as expected in a fire situation.

Key Standards and Certifications for Fire Rated Doors

International Standards for Fire Door Ratings

When it comes to fire rated doors, ensuring that they meet the right standards and certifications is crucial for safety and compliance. Around the world, different organizations have set specific testing methods and performance requirements for fire doors. These standards help determine how well a fire rated door can withstand fire, smoke, and heat. Knowing the key international standards can help builders, property owners, and manufacturers ensure they are using doors that meet safety regulations and perform when it matters most.

UL (Underwriters Laboratories)

In the United States, UL (Underwriters Laboratories) is one of the most recognized organizations for testing and certifying fire rated doors. A UL-listed fire rated door means that the door has passed rigorous testing and is certified to resist fire for a specific amount of time, such as 20, 60, or 90 minutes. The tests examine the door itself and the door assembly, including the frame and hardware.

UL tests ensure that the fire rated door can prevent the spread of fire and smoke in real-world conditions. In addition to fire resistance, UL often tests for things like smoke containment and the durability of door components under extreme heat. This certification is critical for meeting local building codes in many parts of the U.S., particularly in commercial and public buildings.

BS 476 (British Standard)

In the UK, organizations typically test fire rated doors according to BS 476, the British standard for fire-resistant building materials. BS 476 includes a range of fire tests for construction products, but Part 22 specifically applies to fire rated doors. This standard assesses how well a door can hold up against fire and smoke, and professionals widely use it across Europe and the Commonwealth.

Testers will subject a BS 476-certified fire rated door to intense heat in a controlled environment, measuring its fire resistance in minutes, much like UL certifications. These doors play an essential role in meeting UK building regulations, and builders commonly use them in commercial, industrial, and residential buildings. The standard also covers doors with glazed sections, ensuring that even fire-rated glass doors can perform effectively in a fire.

NFPA 80 (National Fire Protection Association)

The National Fire Protection Association in the U.S. sets NFPA 80 as the fire door standard, focusing on the installation, maintenance, and testing of fire rated doors and other fire barriers. NFPA 80 goes beyond just the fire resistance of the door itself. It also outlines how installers should set up fire doors to ensure they function properly in a fire.

According to NFPA 80, inspectors need to regularly examine fire rated doors to confirm that they are in good working condition, especially in high-risk areas such as stairwells and exit routes. This standard emphasizes that fire doors should be part of a larger fire protection system, which includes regular maintenance and replacement of worn-out parts like hinges or intumescent seals.

EN 1634 (European Standard)

In much of Europe, professionals primarily use EN 1634 to test the fire resistance of fire rated doors. It forms part of a larger set of fire and smoke control standards in buildings. EN 1634 tests a door’s ability to hold back fire and smoke under intense heat for a specified period. Like other standards, authorities assign the fire rating in minutes, such as 30, 60, or 120 minutes.

One unique aspect of EN 1634 is that it often includes tests for smoke control, a critical element in many fire rated doors. This is especially important in public buildings such as hospitals, airports, and schools, where the spread of smoke can be just as dangerous as the flames. A door meeting EN 1634 certification ensures it can handle the strict fire safety requirements across Europe.

Testing Procedures for Fire Rated Doors

When it comes to fire rated doors, testing is crucial to ensure that the door can withstand fire and smoke for a specified period. Several methods are used to test fire rated doors, each designed to mimic real-world conditions during a fire. These tests help manufacturers certify that their products meet safety standards and offer reliable protection in an emergency. Two of the most important aspects of this process are the furnace test and the evaluation of integrity, stability, and insulation criteria.

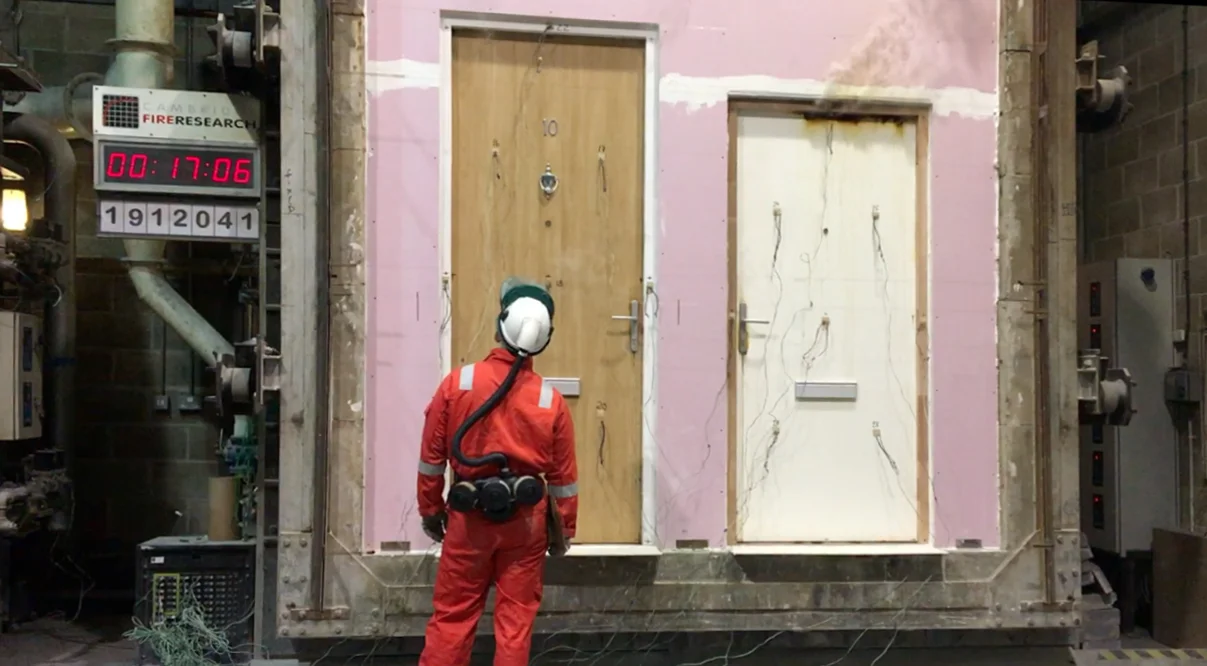

The Furnace Test

Testers primarily use the furnace test to evaluate the performance of a fire rated door. During this test, technicians install the door in a testing frame and apply extreme heat and flames to one side of the door using a large furnace. The temperatures in the stove can exceed 1,000°C (1,832°F), simulating the intense heat of a fire. This test is designed to see how long the door can withstand the fire before it starts to fail.

Testers monitor the door as the furnace heats up to see how well it resists burning, bending, and warping. The goal is determining whether the door can maintain its structural integrity under extreme conditions. If the door can hold up for its rated time—whether 20 minutes or 90 minutes—it passes the test and can be certified as a fire rated door.

This test also measures how well the fire door assembly (including the door, frame, and seals) performs as a whole unit. A failure in any one part of the assembly—like the frame or seals—can cause the door to fail the test.

Integrity, Stability, and Insulation Criteria

In addition to the furnace test, fire rated doors are evaluated based on three key criteria: integrity, stability, and insulation. These criteria help ensure that a fire rated door does more than resist flames—it must also block heat and smoke from spreading to other parts of the building.

Integrity: Integrity refers to the door’s ability to prevent flames and hot gases from passing through. A door with good integrity will remain intact without allowing cracks or holes to develop during the fire. This is critical because any breach in the door could let fire and smoke escape, putting people and property at risk.
Stability: Stability measures how well the door maintains its shape and position under high heat. During a fire, doors can warp or bend, which may cause them to fail. A stable fire rated door stays securely in its frame and functions as a barrier, even when exposed to extreme temperatures.
Insulation: Insulation refers to the door’s ability to keep the heat from transferring to the other side. Even if a door holds up against flames, heat can still radiate through the door and cause nearby materials to catch fire. A fire rated door with good insulation will keep the cool side of the door at a much lower temperature, preventing the spread of heat and protecting escape routes.

By meeting the integrity, stability, and insulation criteria, a fire rated door proves that it can do more than survive a fire—it can actively stop the spread of flames, heat, and smoke, keeping people safe. These tests are essential for ensuring that fire rated doors offer real protection when needed.

Labeling Requirements for Certified Fire Rated Doors

The relevant certification authorities must properly label a fire-rated door for it to be considered compliant and safe. These labels provide essential information about the door’s fire resistance rating, manufacturer, and other critical details.Authorities may not consider a fire-rated door legally compliant without a clear and valid label, which poses a safety risk and violates building codes.

The labeling requirements for certified fire rated doors vary slightly depending on the standard (such as UL, BS, or EN). Still, they all aim to ensure the door has undergone the necessary testing and meets the required performance criteria. Here’s what you can typically find on a fire rated door label:

Fire Rating

This is the most important piece of information on the label. It tells you how long the door can withstand fire, such as 20, 60, or 90 minutes. The rating must indicate where installers can place the door within the building. For instance, building codes require a 90-minute fire-rated door in areas with higher fire risk, such as stairwells or building exits.

Certification Agency

The label will also show the name or logo of the certifying organization (such as UL, BS, or NFPA), indicating that a recognized authority has tested and approved the fire-rated door. This ensures that the door meets the local and international safety standards required for its installation.

Manufacturer Information

The label will also include the name of the door manufacturer and possibly a serial number or unique identifier for the door. This helps with traceability and ensures that if questions arise about the door’s compliance, you can contact the manufacturer for further details.

Additional Information

Some labels may include extra information, such as the door’s material (e.g., steel, timber, or glass) or whether the door is rated for smoke resistance. This can be important for ensuring the door meets specific safety needs, like preventing smoke spread in hospitals or apartment buildings.

The labeling on fire rated doors is often found on the hinge side of the door or on the top edge, so it’s easy to check during installation or inspection. In many cases, building inspectors or fire marshals will look for these labels to ensure that all fire doors in a building are properly certified and installed.

Different Types of Fire Rated Doors

Materials Used in Fire Rated Doors

When it comes to fire rated doors, the material used plays a significant role in how well the door performs during a fire. Different materials provide different levels of protection, aesthetics, and suitability for various applications. Let’s explore the four types of fire rated doors: steel, timber, glass, and composite.

Steel Fire Doors

Steel fire doors are among the most robust and durable options available. Made from heavy-gauge steel, these doors offer excellent fire resistance and are ideal for commercial and industrial settings. They can withstand high temperatures and are often rated for longer periods, such as 60 to 120 minutes.

One of the main advantages of steel fire doors is their durability; they resist impact and wear better than many other materials. Additionally, they require minimal maintenance and can be easily painted or finished to fit the building’s aesthetic. Steel fire doors also offer excellent security features, making them popular for high-risk areas.

Wooden Fire Doors

Wooden fire doors combine the natural beauty of wood with effective fire protection. People commonly use them in residential buildings and offices, where aesthetics matter. Manufacturers construct these doors with a solid core, often using fire-rated materials, to withstand flames and heat for specified durations, usually 30 to 60 minutes.

One key benefit of timber fire doors is their insulation properties, which can help with energy efficiency. Finishers can also apply various stains or paints to match interior designs. However, timber fire doors may require more maintenance than steel doors, as they are more susceptible to wear and moisture damage.

Glass Fire Doors

Glass fire doors offer a unique solution, allowing natural light to flow while still providing fire protection. Made from specially tempered or laminated glass, these doors can be rated for fire resistance for up to 60 minutes or more, depending on the design and materials used.

These doors are ideal for commercial spaces, such as offices, shopping centers, and lobbies, where visibility is essential. They come in various designs, from clear to frosted or tinted glass, and can enhance the overall aesthetics of a building. However, it’s important to ensure the frames and seals are fire-rated to maintain the door’s effectiveness.

Composite Fire Doors

Composite fire doors are a hybrid option that combines multiple materials to enhance performance. They often feature a core made of fire-resistant materials, surrounded by a durable outer layer of wood, steel, or fiberglass. This design offers composite fire doors strong fire resistance while being lightweight and easy to handle.

These doors are versatile and suitable for various applications, from residential homes to commercial buildings. Manufacturers can design composite fire doors to look like traditional wood doors while providing better fire and moisture resistance. Their flexibility in design and function makes them a popular choice for many architects and builders.

Single vs. Double Fire Rated Doors

When selecting fire rated doors, one important choice is between single and double fire rated doors. Each type offers unique features and suits different applications. Understanding these differences can help you make the best choice for your building’s safety and functionality.

Single Fire Rated Door

Single fire rated doors are the most common type. These doors have a single panel that swings open or closed on hinges. People typically use them in smaller openings like residential homes, offices, or storage areas. A single fire rated door is ideal for places with limited space or where a straightforward entry is needed.

One major advantage of single fire rated doors is their ease of installation. They usually require less hardware and are simpler to operate. In addition, they can offer a more cost-effective option compared to double doors. Depending on the fire rating, these doors can effectively protect against fire and smoke while fitting seamlessly into various design styles.

Double Fire Rated Door

On the other hand, double fire rated doors consist of two door panels that meet in the middle when closed. People often use these doors in larger openings, such as commercial buildings, industrial facilities, or main entrances where higher traffic is expected. They allow for wider access, making moving large equipment or multiple people through at once easier.

Double fire rated doors also provide enhanced protection in critical areas, such as exit routes and fire-rated corridors. The increased size can help ensure that the area remains accessible even during an emergency, allowing for quick evacuations. However, they typically require more hardware, such as additional hinges and locking mechanisms, which can add to the installation complexity and cost.

Fire Rated Doors with Glazing: Benefits and Considerations

Fire rated doors with glazing offer a unique blend of safety and aesthetics. They combine the protective qualities of a fire rated door with the transparency of glass, allowing for more natural light and visibility while still providing essential fire protection. These doors are becoming more popular in modern designs, especially in office buildings, schools, hospitals, and other public spaces. But before installing a fire rated door with glazing, it’s important to understand both the benefits and considerations.

Benefits of Fire Rated Doors with Glazing:

Increased Visibility: One of the main advantages of adding glazing to a fire rated door is visibility. The glass panels allow people to see through the door, making monitoring activity on the other side easier. This is especially useful in busy areas like hallways, lobbies, or reception areas, where visibility can improve safety and communication.
Natural Light: Glazed fire rated doors bring in natural light, brightening up otherwise dim or enclosed spaces. This can improve the overall atmosphere of a building, making it feel more open and inviting. In areas like offices or corridors, natural light can also help reduce the need for artificial lighting, which may lower energy costs.
Modern Aesthetic: For those looking for a sleek, contemporary look, fire rated doors with glazing provide the perfect balance of functionality and style. The glass panels add a modern touch to the door while meeting strict fire safety requirements. These doors can be tailored to fit different design preferences, whether with clear, frosted, or tinted glass.

Considerations for Fire Rated Doors with Glazing:

Fire Resistance of Glass: Since not all glass is fire resistant, manufacturers must specially design the glazing used in a fire rated door to withstand heat and flames. Manufacturers typically make fire-rated glass with multiple layers of tempered or laminated glass that can withstand fire for the door’s rated time, such as 30, 60, or 90 minutes. It’s important to ensure that the glass, like the door itself, is certified by a recognized testing body.
Frame and Seals: Besides the glass, the door frame and seals play a critical role in maintaining the door’s fire rating. Manufacturers must use fire-resistant materials for the frame, and the seals should be intumescent, meaning they expand when exposed to heat to block the spread of smoke and flames. If installers properly fit these components, the glazing will offer full protection.
Cost: Fire rated doors with glazing tend to be more expensive than solid fire doors. The price can vary depending on the size and type of glazing used and the complexity of the door’s installation. However, the added benefits, especially light and visibility, may justify the higher price in certain settings.
Privacy: While glazing provides visibility, it can also compromise privacy. You may opt for frosted or tinted glass in spaces where privacy is important, like offices or hospital rooms. This still allows light through while limiting direct sightlines.

Fire Rated Door Installation and Maintenance

Best Practices for Installing Fire Rated Doors

Installing a fire rated door properly is critical to ensuring that it performs as expected in the event of a fire. Even the best fire-rated door can fail if it’s not installed according to the right procedures. Let’s look at some best practices to help ensure the installation is safe and compliant with building codes.

Compliance with Building Codes

One of the most important steps when installing a fire rated door is to ensure that the installation complies with local building codes and regulations. Authorities establish these codes to ensure that installers correctly install fire rated doors, and the codes can vary depending on your location. Building codes specify which doors must be fire rated, how long they must resist fire, and where to place them, such as in stairwells or exit routes.

When installing a fire rated door, always check with local authorities or code officials to ensure that you’re following the required standards. Failure to do so could lead to penalties, safety risks, or voiding the door’s fire rating.

Proper Frame Installation and Alignment

Another critical aspect of fire rated door installation is ensuring that installers correctly fit and properly align the door frame. The frame plays a key role in holding the door during a fire, so installers must use fire-resistant materials and fit it tightly into the wall. Any gaps between the frame and the wall can allow smoke or flames to spread, compromising the door’s effectiveness.

During installation, installers must carefully align the door within the frame. If the door is crooked or does not fit properly, it may not close tightly in an emergency. Regular alignment checks and adjustments are essential for keeping the door in top condition.

Use of Certified Fire Door Hardware (Hinges, Latches, Closers)

A fire rated door is only as strong as its hardware. It’s important to use certified fire door hardware to ensure the door will function as expected during a fire. This includes hinges, latches, and closers, which must be fire-rated and tested to work under high-heat conditions.

Hinges: Manufacturers design fire door hinges to keep the door securely mounted to the frame, even under extreme heat. Regular door hinges won’t stand up to fire, so using the proper fire-rated ones is crucial.
Latches: Fire-rated latches ensure that the door remains closed during a fire. The latch mechanism must be strong enough to resist pressure and heat, as an open door can allow fire and smoke to spread.
Closers: Fire door closers automatically shut the door after opening, ensuring it remains closed when not in use. This is important because a fire rated door can only stop a fire if properly closed.

By following these best practices and using the correct materials, you’ll ensure that your fire rated doors are compliant, properly installed, and able to perform in the event of a fire.

Routine Inspection and Maintenance Requirements

Regular inspection and maintenance are essential to ensure a fire rated door works as it should during an emergency. Fire rated doors are critical safety features in any building, and keeping them in good condition can make all the difference in a fire. Routine inspections help catch issues early and ensure the door complies with safety standards.

Checking for Wear and Tear

Over time, a fire rated door can experience wear and tear from daily use. This includes damage to the door, frame, or hardware. Regular checks should focus on the door’s surface for any signs of damage, such as cracks, warping, or dents. Even small issues can impact the door’s ability to resist fire, so it’s important to address any visible damage immediately.

Inspect the hinges, latches, and closers as well. These parts must function smoothly without sticking or failing to latch properly. If a door doesn’t close completely or is difficult to operate, it won’t provide the level of protection it should. Testing the door regularly will help ensure everything is in working order.

Replacing Intumescent Seals and Other Components

Intumescent seals play a crucial role in a fire rated door. These seals expand when exposed to heat, sealing off gaps between the door and the frame to stop smoke and flames from passing through. Over time, these seals can become worn, damaged, or lose their effectiveness. As part of your routine maintenance, you should inspect the seals to ensure they’re intact and haven’t deteriorated.

If you notice any damage, replacing the seals immediately is important. Using certified replacement seals ensures that the door will maintain its fire rating. Other components, like hinges, latches, or closers, should also be inspected and replaced with fire-rated hardware.

Documentation and Record Keeping for Compliance

Proper documentation is a key part of maintaining fire rated doors. Keeping detailed inspections, maintenance, and repair records is essential for compliance and safety. This documentation proves that maintenance follows regulations and can be crucial during safety audits or inspections.

Records should include the date of each inspection, what the inspector checked, any repairs made, and notes on replaced components. Maintaining up-to-date documentation keeps you compliant with building codes and provides a clear history of the door’s condition and any work done over time.

Common Mistakes in Fire Rated Door Installation and How to Avoid Them

Installing a fire rated door is more complex than it might seem. Several common mistakes can compromise the door’s fire resistance, making it less effective in an emergency. Understanding these errors—and how to avoid them—will ensure that your fire rated door functions properly and remains compliant with safety regulations.

1. Incorrect Frame Installation

One of the most frequent mistakes in fire rated door installation is improper frame installation. The frame is a critical component that holds the door in place and helps prevent the spread of fire and smoke. If installers fail to securely install the frame or if it is not fire-rated, the door will not perform as intended. Misaligning the frame creates gaps that allow smoke and heat to pass through, even if the door is closed.

How to avoid it: Ensure that fire-resistant materials make up the frame and that it fits tightly into the wall. Always follow the manufacturer’s installation guidelines and check for proper alignment after setting the frame.

2. Using Non-Certified Hardware

Another common mistake is using non-fire-rated hardware. Hinges latches, closers, and seals must all be certified to withstand high heat and maintain the door’s integrity. Using non-certified or standard hardware can cause a fire-rated door to fail during a fire.

How to avoid it: Always use certified fire door hardware. Ensure that manufacturers have tested and approved all components—hinges, latches, and closers—for fire-rated applications. Double-check the certification on all parts before installation.

3. Not Properly Sealing Gaps

Even small gaps between the door and the frame allow smoke and fire to spread quickly. Intumescent seals, which expand when heat exposure, are designed to close these gaps. However, many installers need to remember to include these seals or place them correctly, which weakens the door’s ability to stop fire and smoke.

How to avoid it: Install intumescent seals correctly around the edges of the door and frame. Regularly inspect the seals for wear and tear and replace them as needed. Ensure there are no visible gaps between the door and the frame after installation.

4. Poor Alignment or Failure to Close Properly

A fire rated door that doesn’t close completely or is misaligned will not offer full protection. Sometimes, doors are installed without checking the alignment, resulting in doors that stick or don’t close flush with the frame. An improperly closed door can allow flames and smoke to pass through a fire.

How to avoid it: After installation, test the door multiple times to ensure it opens and closes smoothly without sticking. The door should fit perfectly into the frame and latch securely every time. Regular maintenance checks should also include verifying proper alignment.

5. Ignoring Building Code Requirements

Many install fire rated doors without checking local building codes or fire safety regulations. Each region may have different rules regarding fire door placement, ratings, and installation methods. Failing to follow these regulations can result in fines or penalties and, more importantly, put lives at risk.

How to avoid it: Always check local building codes and fire safety standards before starting an installation. Ensure the door, frame, and hardware all meet the required fire rating and that the door is installed in the appropriate location according to the code.

Benefits of Installing Fire Rated Doors

Enhanced Safety for Occupants

One of the biggest benefits of installing fire rated doors is the increased safety they provide for building occupants. These doors are designed to slow the spread of fire and smoke, giving people more time to evacuate safely. In an emergency, every second counts, and a fire rated door can make a big difference in preventing injuries and saving lives. By containing fire in one area, these doors create a safer path to exits, allowing people to escape with less risk of exposure to dangerous smoke and flames.

Containing Fire and Limiting Damage

Another major advantage of fire rated doors is their ability to contain fires, limiting the amount of damage to the building. These doors are built to resist fire for a certain amount of time—whether 20 minutes or up to 2 hours—preventing the fire from spreading to other parts of the structure. This containment helps protect valuable assets, equipment, and other building parts from being destroyed. In addition, by slowing the fire’s progression, fire rated doors make it easier for firefighters to control and eventually extinguish the fire.

Meeting Regulatory Requirements and Avoiding Fines

Installing fire rated doors is also essential to complying with local building codes and fire safety regulations. Most commercial buildings, schools, and residential complexes are required by law to have fire rated doors in certain areas, such as stairwells and exit routes. Failure to meet these requirements can result in fines, penalties, or legal action. By ensuring that your building has certified fireproof doors, you’re enhancing safety and avoiding potential costs and legal trouble down the road.

Increased Property Value with Certified Fire Rated Doors

Investing in fire rated doors can also boost the value of your property. Buyers and tenants are increasingly focused on safety features, and installing fire-resistant doors can make a property more attractive. In addition to offering peace of mind, these doors demonstrate that the building meets safety standards and is well-maintained. This can be a strong selling point for prospective buyers, helping you command a higher price when selling or renting out your property. A building equipped with certified fire doors is safer and more marketable.

Fire Rated Doors in Different Applications

Commercial Buildings

Fire rated doors play a crucial role in ensuring the safety and security of commercial buildings. Whether it’s an office, a retail store, or a warehouse, these doors prevent the rapid spread of fire and smoke, giving people more time to evacuate and reducing property damage. In commercial settings, where many people may be present at once, balancing the importance of having fireproof doors is crucial.

Office Spaces, Retail Stores, and Warehouses

In office buildings, installers often place fire rated doors in stairwells, hallways, and exit routes to help contain fires and ensure safe evacuation. These doors keep the fire from spreading between floors or building sections, allowing employees and visitors to exit safely. These doors often help minimize damage to expensive office equipment, computers, and important documents.

Retail stores, especially larger ones like shopping malls or supermarkets, benefit from fire rated doors installed in storage areas, entrances, and corridors. These doors protect inventory and create safer escape routes for staff and customers by containing a fire in one section of the building.

Warehouses, where large quantities of goods are stored, rely heavily on fire rated doors to protect valuable merchandise. Fires in warehouses can be particularly devastating due to the high volume of flammable materials often stored there. Fire resistant doors help to contain these fires, limiting damage to inventory and giving firefighters more time to control the blaze.

In each of these environments, fire rated doors contribute to the safety and preservation of property and business continuity. They are essential to any fire safety plan in commercial spaces, reducing risk and helping businesses avoid potentially catastrophic losses.

Fire Rated Doors for Residential Buildings

Regarding residential buildings, fire rated doors play a vital role in protecting people and property. Whether it’s a large apartment complex or a single-family home, these doors can help contain fire and smoke, giving residents more time to evacuate and reducing the risk of damage to the building. Installing fire resistant doors in residential spaces enhances safety and ensures compliance with local building codes.

Apartment Complexes and Single-Family Homes

In apartment complexes, fire can spread quickly between units due to the proximity of living spaces. Fire rated doors installed in common areas, stairwells, and individual apartments help to prevent fire and smoke from moving through the building. This containment not only protects residents but also limits damage to neighboring units. Having a fireproof door can make the difference between safely escaping a fire and exposing apartment dwellers to harmful smoke or flames. In multi-story buildings, these doors are especially critical in stairways and exits, providing safe routes during emergencies.

In single-family homes, fire rated doors are a crucial safety feature. People commonly use them to separate garages from the rest of the house, as garages often contain flammable materials such as gasoline, paint, and cars. A fire resistant door between the garage and the living area can slow down the spread of fire, protecting the home’s occupants and giving firefighters more time to respond. Installers can also place these doors in basements or utility rooms, which may house furnaces or electrical panels that pose fire risks.

For homeowners, adding fireproof doors is a smart way to enhance fire safety and protect their families. These doors not only provide an extra layer of protection but also offer peace of mind, knowing that you are well-prepared in case of an emergency.

Fire Rated Doors for Industrial and Public Buildings

In industrial and public buildings, fire rated doors are essential for protecting large numbers of people and valuable assets. Places like hospitals, schools, and airports serve as critical infrastructure, and the safety of their occupants depends heavily on fireproof doors that help contain fire and smoke. These buildings often see heavy foot traffic and house vulnerable individuals, making using fire resistant doors even more crucial in emergencies.

Hospitals, Schools, and Airports

In hospitals, the priority is patient safety. Many patients are immobile or require assistance to evacuate, so fire rated doors play a critical role in controlling the spread of fire and smoke. These doors are often placed in corridors, emergency exits, and patient rooms to provide a safe passage for evacuations, ensuring the safety of patients and medical staff. Fireproof doors give medical staff the time they need to move patients to safety without the immediate threat of fire spreading through the facility.

Schools rely heavily on fire rated doors, especially in classrooms, hallways, and gymnasiums. With many students and staff members in the building, it’s important to have effective fire protection measures in place. These doors help create fire-safe zones, giving teachers and students the time needed to exit the building safely. School fire doors are crucial for keeping evacuation routes clear and preventing the fire from reaching other parts of the building.

In airports, where thousands of travelers pass through every day, fire resistant doors are used to protect public areas and ensure safe evacuation during an emergency. Airports have large, open spaces like terminals and concourses, which makes fire containment challenging. By using fireproof doors in key areas, airports can limit the spread of fire to secure spaces, helping travelers and staff escape safely. Moreover, these doors play a crucial role in protecting critical equipment and control rooms, ensuring that airport operations can continue running smoothly even during a fire emergency.

Emerging Trends in Fire Rated Door Technology

Advancements in Fire-Resistant Materials

One of the most exciting trends in fire rated door technology is the advancement of new, more effective, fire-resistant materials. Traditional materials like steel and timber are still widely used, but innovations in composites and glass have made doors stronger and lighter. For example, new composite materials offer improved fire resistance while remaining lightweight and easier to install. Fire rated doors made from these materials can now provide better protection without compromising design or functionality, making them ideal for modern buildings where safety and aesthetics are important.

Smart Fire Rated Doors: Integrating with Building Management Systems

As technology evolves, smart fire rated doors are becoming more common. These doors can now integrate with building management systems (BMS), allowing real-time monitoring and control. In the event of a fire, these doors can automatically close to contain the fire while communicating with the building’s fire alarms and sprinklers. This integration helps enhance overall building safety by ensuring that all systems work together during emergencies. Smart fireproof doors can also provide data on usage, allowing facility managers to perform maintenance and testing more efficiently, reducing the risk of door failure during a fire.

Energy-Efficient Fire Rated Doors

Another emerging trend is the development of energy-efficient fire rated doors. These doors meet stringent fire safety standards, and help reduce energy loss. They are designed to provide better insulation, helping maintain the temperature inside the building and reducing the need for heating or cooling. This dual functionality is especially useful in large commercial or industrial buildings with high energy consumption. Building owners can improve fire safety by installing fireproof doors with energy-efficient properties while lowering their energy bills and carbon footprint.

Conclusion

Recap of the Importance of Fire Rated Doors

Fire rated doors are a key part of any building’s safety system. They help to contain fire and smoke, giving people more time to evacuate and protecting property from damage. Whether in homes, offices, hospitals, or airports, these fireproof doors provide peace of mind and play a vital role in minimizing risks during a fire emergency. They don’t just protect lives; they also help limit structural damage, which can save money on repairs and insurance claims. From single-family homes to industrial buildings, installing fire resistant doors is a simple yet powerful way to enhance safety.

Ensuring Safety and Compliance with Fire Door Regulations

To fully benefit from fire rated doors, it’s important to ensure they meet the necessary standards and regulations. Regular inspections and proper maintenance ensure these doors perform as intended in an emergency. Compliance with local building codes and fire safety regulations, like those from UL or NFPA, is essential. By choosing certified fireproof doors, using the right hardware, and following installation guidelines, building owners can avoid fines and, more importantly, ensure the safety of everyone inside. Investing in well-maintained fire rated doors keeps you compliant and guarantees that your property is protected when it matters most.

In conclusion, fire rated doors are a critical investment in safety and compliance. They help protect people, limit damage, and ensure that your building meets fire safety standards, providing long-term benefits for any property.

Relate FAQ

What is a fire rated door?

A fire rated door is designed to withstand fire for a specified amount, typically 20 to 120 minutes. These doors help prevent the spread of fire and smoke, offering valuable time for occupants to evacuate and protecting property from extensive damage.

How long does a fire rated door last in a fire?

The duration a fire rated door can withstand fire depends on its rating. Common fire ratings include 20-minute, 45-minute, 60-minute, 90-minute, and 120-minute doors. Each rating indicates how long the door can resist fire before it starts to fail.

What materials are fire rated doors made of?

Fire rated doors can be made from various materials, including steel, timber, glass, and composite. The choice of material depends on the required fire rating, design preferences, and the specific application of the door.

Do fire rated doors need special hardware?

Yes, fire rated doors must be installed with certified fire-rated hardware such as hinges, latches, and door closers. These components ensure the door will function correctly in a fire and maintain its integrity for the duration of its rating.

Can fire rated doors have glass panels?

Yes, fire rated doors can have glass panels, but the glass must also be fire-resistant. Fire-rated glass is designed to withstand high temperatures and prevent the spread of fire and smoke, offering safety without sacrificing visibility.

How often should fire rated doors be inspected?

Fire rated doors should be inspected at least annually, but more frequent inspections may be required depending on local regulations or the environment in which the door is installed. Regular maintenance ensures the door remains compliant and functional.

Are fire rated doors required by law?

Yes, many building codes and fire safety regulations require fire rated doors in certain commercial, residential, and industrial areas. These laws vary by region, but compliance is essential for safety and legal purposes.

What happens if a fire rated door is damaged?

If a fire rated door is damaged, its ability to contain fire and smoke can be compromised. Damaged doors should be repaired or replaced immediately to ensure compliance with fire safety standards and maintain protection.
